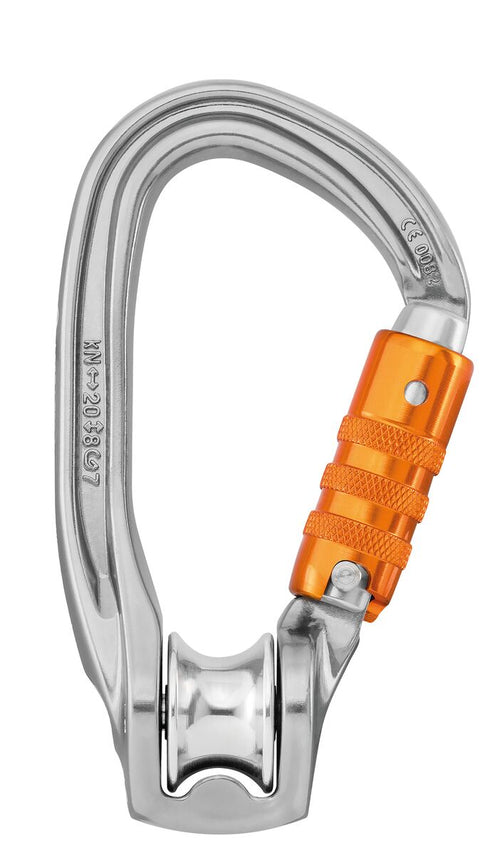

Petzl ROLLCLIP Z Pulley-Carabiner
The Petzl ROLLCLIP Z is a compact pulley-carabiner designed for efficient connection to anchors and rescue or rope-access equipment. Its unique gate opening on the side opposite the pulley makes it easier to install onto anchors and compatible devices, particularly where access is restricted.
The ROLLCLIP Z combines a sealed ball-bearing pulley with a high-strength aluminium carabiner, providing smooth rope movement and an efficient solution for hauling, directional systems and equipment positioning.
The pulley is compatible with ropes from 7 to 13 mm in diameter and features an 18 mm pulley sheave with an efficiency of 85%.
Key Features
- Pulley-carabiner combination saves space and reduces equipment weight
- Gate opens on the non-pulley side, making installation onto anchors and devices easier
- Sealed ball-bearing sheave provides 85% efficiency for smooth rope movement
- Keylock nose helps prevent accidental snagging when connecting equipment
- Aluminium construction provides a strong and lightweight solution
- Available with either TRIACT-LOCK automatic locking or SCREW-LOCK manual locking
- Suitable for 7–13 mm ropes
- Ideal for professional rescue, rope access, working at height and tree care applications
Available Locking Options
P75 TL – TRIACT-LOCK
Automatic triple-action locking system for quick and secure operation. Weight: 110 g. Gate opening: 20 mm.
P75 SL – SCREW-LOCK
Manual screw-lock system with a red visual indicator to help identify when the carabiner is unlocked. Weight: 105 g. Gate opening: 21 mm.
Specifications
| Specification | ROLLCLIP Z |
|---|---|
| Rope diameter | 7–13 mm |
| Pulley sheave diameter | 18 mm |
| Maximum working load | 4 kN |
| Pulley efficiency | 85% |
| Major axis strength | 20 kN |
| Minor axis strength | 8 kN |
| Open gate strength | 7 kN |
| Material | Aluminium |
| P75 TL weight | 110 g |
| P75 SL weight | 105 g |
| P75 TL gate opening | 20 mm |
| P75 SL gate opening | 21 mm |
| Standards | EN 362, EN 12278 |
| Warranty | 3 years |
Professional Rescue & Rope Systems
The ROLLCLIP Z is particularly useful where a compact pulley and connector are required as part of a rope rescue or hauling system. The pulley can also be used as a directional point on the upper attachment point of the Petzl ASCENSION handled rope clamp for short rope ascents.
Important: The ROLLCLIP Z must be used in accordance with the manufacturer's instructions and within its specified working load and application limitations.
