Fusion Climb Strux Rescue Side Swing Pulley – Blue
Heavy-duty side-swing pulley for rope rescue systems

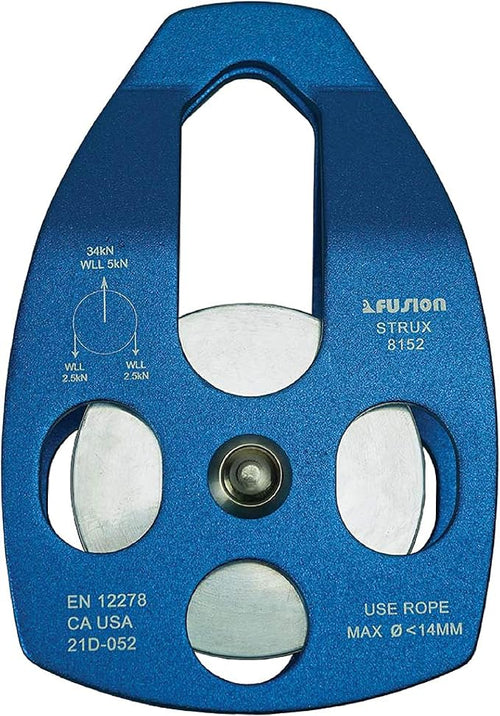

The Fusion Climb Strux Rescue Side Swing Pulley is a robust aluminium pulley designed for rope rescue, technical rope access and hauling applications.
Featuring fixed side-swing aluminium plates, smooth rounded edges and a large attachment hole, the Strux provides straightforward rope installation and plenty of room for multiple rescue carabiners. Its 34 kN minimum breaking strength makes it suitable for demanding professional rope systems.
The pulley features a 51 mm (2 inch) aluminium sheave with a 16 mm rope groove and is suitable for ropes from 9 to 14 mm in diameter. The compact design and durable matte powder-coated finish make it a practical choice for rescue and technical rope equipment kits.
Key Features
- Professional aluminium rescue pulley
- 34 kN minimum breaking strength
- Side-swing aluminium side plates for easy rope installation
- Large attachment hole accommodates multiple carabiners
- Smooth, rounded edges help minimise snagging
- Durable matte powder-coated finish
- 51 mm sheave diameter
- Suitable for 9–14 mm rope
- Complies with CE EN 12278
- Blue finish
- Suitable for technical rescue, rope access and hauling systems
Technical Specifications
| Specification | Details |
|---|---|
| Model | FP-8152-BLK |
| Material | Aluminium |
| Sheave diameter | 51 mm |
| Rope capacity | 9–14 mm |
| Minimum Breaking Strength (MBS) | 34 kN |
| Weight | 250 g |
| Side plates | Fixed aluminium side-swing |
| Finish | Matte powder coat |
| Standard | CE EN 12278 |
| Colour | Blue |
Applications
The Strux Rescue Side Swing Pulley is suitable for:
- Technical rope rescue
- Swiftwater and flood rescue
- Search and rescue
- Rope access
- Mechanical advantage systems
- Hauling and rescue systems
- Professional emergency services
- Industrial rope systems
Easy rope installation
The side-swing plate design allows the pulley to be opened for quick rope installation without having to thread the rope through a closed pulley. The large attachment point provides space for multiple rescue carabiners, making the Strux practical for building compact mechanical advantage and hauling systems.
With its 34 kN MBS, 9–14 mm rope capacity and EN 12278 compliance, the Strux is a capable addition to professional rescue and technical rope equipment.
Note: Always select and use pulleys in accordance with the manufacturer's instructions, applicable standards and the requirements of the complete rope system.
